6 Micro-well glass bottom plate with 20 mm micro-well #1.5 cover glass
6 micro-well glass bottom plate with #1.5 cover glass(0.16-0.19). Micro-well size 20mm, with lid, Individually packed. Designed for high resolution imaging such as confocal microscopy.
Coverslip :
Catalog # :
P06-20-1.5-N , request a free sample or Get a quote
Packing :
20/case
Price :
Availability :
41 cases in stock
Features:
- Suitable for long term tissue culture
- Manufactured in a class 100,000 clean room
- Plate made from virgin polystyrene, tissue culture treated.
- German cover glass of superior optical quality
- A USP class VI adhesive is used to assemble the cover glass and the plate.
- Sterilized by Gamma radiation.
- Conforms to ANSI/SBS 1-2004 standards
Suitable for:
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Recommended for:
- Confocal Microscopy
Technical specifications
» View technical specification of different coverslips.
| Frame color | Transparent |
|---|---|
| Coverslip | #1.5 cover glass (0.16 - 0.19 mm) |
| Micro well size | 20 mm |
| Length | 127.61 mm |
| Width | 85.42 mm |
| Height | 20.1 mm |
| Height with lid | 22.5 mm |
| Stacking height (with lid) | 19.5 mm |
| Microwell Depth | 1.4mm |
| Temperature Range | -20°C to 50°C |

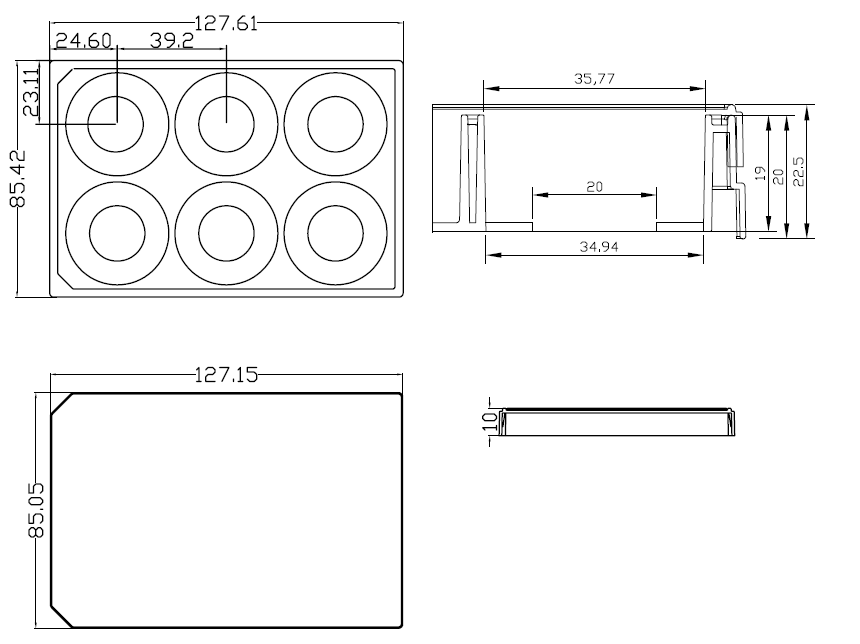

Dimension diagram (units in mm)
