35 mm Glass bottom dish with 20 mm micro-well #0 cover glass
35mm glass bottom dish, dish size 35mm, well size 20mm, #0 cover glass(0.085mm-0.115mm). Designed for high resolution imaging such as confocal microscopy.
Note: We found that a small percentage of microscope adapters are too small for our 35 mm glass bottom dishes. Please check carefully the dimension diagram. If your adapter is too small, you should use our 29 mm glass bottom dish instead.
45 cases in stock
Features:
- Suitable for long term tissue culture
- Manufactured in a class 100,000 clean room
- Dish made from virgin polystyrene, tissue culture treated.
- German cover glass of superior optical quality
- A USP class VI adhesive is used to assemble the cover glass and the dish.
- Packed in easy to open peelable bag
- Sterilized by Gamma radiation.
Suitable for:
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Technical specifications
» View technical specification of different coverslips.
| Coverslip | #0 cover glass (0.085-0.115 mm) |
|---|---|
| Temperature Range | -20°C to 50°C |
| Lid diameter(outer) | 40 mm |

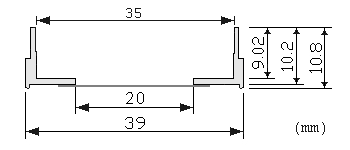

Dimension diagram (units in mm)
Cited Publications before 2019 (7)
-
Deficiency of Natriuretic Peptide Receptor 2 Promotes Bicuspid Aortic Valves, Aortic Valve Disease, Left Ventricular Dysfunction, and Ascending Aortic Dilatations in Mice
Mark C Blaser, et al., Circulation Research, December 2017
Quote: "Gels were fabricated in glass-bottom Petri dishes with a microwell diameter of 20 mm, overall diameter of 35 mm, and #0 cover glass bottom (D35-20-0-N, In Vitro Scientific, Sunnyvale, CA)." -
The CARMA3-Bcl10-MALT1 Signalosome Drives NF-κB Activation and Promotes Aggressiveness in Angiotensin II Receptor-positive Breast Cancer.
P Ekambaram, et al., Cancer Research, Dec 2017
Quote: "130 BT549 and ZR75 cells were plated on glass-bottom 35mm dishes (D35-20-0-N, Cellvis)" -
Determination of Autophagy in the Caco-2 Spontaneously Differentiating Model of Intestinal Epithelial Cells
S Tunçer, et al., Methods in Molecular Biology, August 2017
Quote: "Glass bottom dish: 35mm Glass bottom dish with 20 mm micro-well #0 cover glass (Cellvis, Mountain View, CA, USA, cat no: D35-20-0-N)." -
Tumacrophage: macrophages transformed into tumor stem-like cells by virulent genetic material from tumor cells
Yizhuang Zhang, et al., Oncotarget. 2017 Oct 10; 8(47): 82326–82343.
Quote: "Monocytes were plated at a density of 2.5 ×106/ml in glass confocal dishes (D35-20-0-N, Cellvis)." -
PARK2-dependent mitophagy induced by acidic postconditioning protects against focal cerebral ischemia and extends the reperfusion window
Zhe Shen, et al., Autophagy
Quote: "primary neurons were seeded onto a poly-l-lysine-treated glass bottom dish (In Vitro Scientific, D35–20–0-N) and transfected with GFP-LC3 or GFP-PARK2 as aforementioned." -
Integrin αVβ5-mediated removal of apoptotic cell debris by the eye lens and its inhibition by UV-light exposure
D Chauss, et al., JBC, November 2, 2015
Quote: "SRA 01/04s were plated at a density of 150,000 cells/well on glass-bottom 35 mm2 tissue culture dishes (In Vitro Scientific, cat. no. D35-20-0-N, Sunnyvale, CA)" -
In vitro optimization of EtNBS-PDT against hypoxic tumor environments with a tiered, high content, 3D model optical screening platform
Oliver J Klein , Brijesh Bhayana , YongJin Park , and Conor L. Evans, Mol. Pharmaceutics, September 4, 2012, DOI: 10.1021/mp300262x
Quote: "For live cell imaging, 35 mm glass-bottom dishes(D35-20-0-N, In Vitro Scientific) were seeded with 200,000 OVCAR5 cells 24 hoursprior to experiments"
