35 mm Glass bottom dish with 14 mm micro-well #1.5 gridded (exterior) cover glass
35mm glass bottom dish, dish size 35mm, well size 14mm, #1.5 cover gridded glass(0.16mm-0.19mm).
A 20x26 Grid is etched onto the exterior of the cover glass. i.e, the grid and cultured cell are on different focal plane.
Designed for high resolution imaging such as confocal microscopy.
Note: We found that a small percentage of microscope adapters are too small for our 35 mm glass bottom dishes. Please check carefully the dimension diagram. If your adapter is too small, you should use our 29 mm glass bottom dish instead.
Coverslip :
#1.5Grid » view coverslip specs
Catalog # :
D35-14-1.5GO , request a free sample or Get a quote
Packing :
48/case
Price :
Availability :
8 cases in stock
Features:
- Suitable for long term tissue culture
- Manufactured in a class 100,000 clean room
- Dish made from virgin polystyrene, tissue culture treated.
- German cover glass of superior optical quality
- A USP class VI adhesive is used to assemble the cover glass and the dish.
- Packed in easy to open peelable bag
- Sterilized by Gamma radiation.
Suitable for:
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Recommended for:
- Confocal Microscopy
Technical specifications
» View technical specification of different coverslips.
| Coverslip | #1.5 cover glass (0.16 - 0.19 mm) with a 20x26 grid (0.6mm x 0.6mm each) located at the exterior of the dish |
|---|---|
| Temperature Range | -20°C to 50°C |

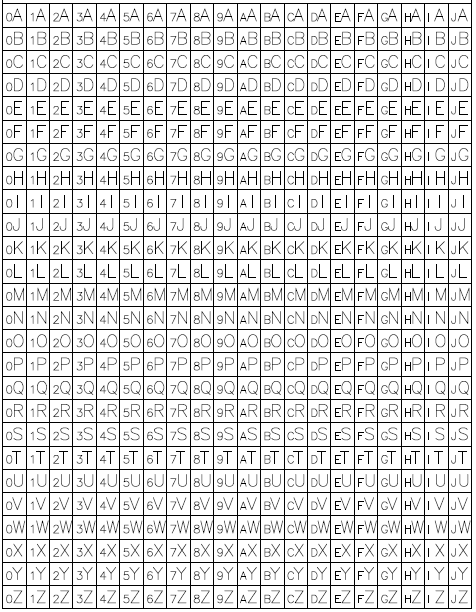

| Grid layout |
|
| Lid diameter(outer) | 40 mm |
Dimension diagram (units in mm)
